About my Weather Station |
|
|

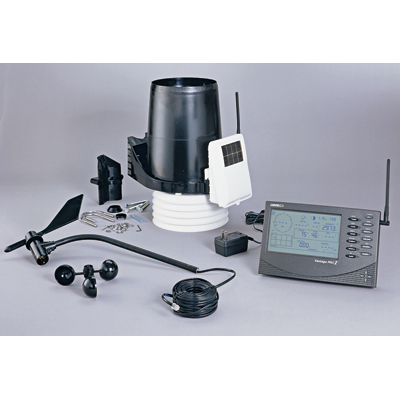

The System - is based around the Davis Vantage Pro2 with serial Logging interface. supplied by Weather Stations from Weather Shop®
|
|
|
Software |
|
|
WeatherLink & WxLinkGui Fixer to display the "bulletin" page at startup. See WeatherLink Softwear Board Weather Display Live Weather Display Live is an add-on for Weather Display which allows you to view live weather data over the web from your weatherstation in nearly real time VPLive VPLive is a program that connects to a Davis Vantage Pro 1 or 2 Weather Station console and displays the live data VirtualVP VirtualVP is a program that lets you connect up to 4 weather programs to a single Davis Vantage Pro 1 or 2 weather station Watchdog - O - Matic 5.01 is a software watchdog that monitors and diagnoses any program you want. Watchdog - O - Matic automatically solves any problem the monitored application encounters and it will restart the program if it crashes or hangs BMExtreme (Bandwidth Monitor Extreme) LP23.com. Web Server Apache HTTP server for windows |
|
|
Computer HP Compaq D530 2.8GHz, 1.Gbyte RAM and 40Gbyte hard disc |
|
|

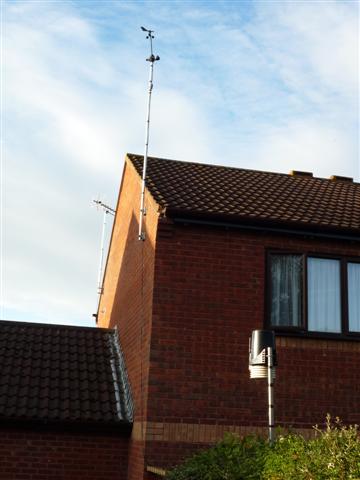

The anometer is mounted on a 3 meter mast fixed to the side of the house at 5 meters giving a total height above ground of approximately 8 meters. The rain fall & temperature detector is mounted at about 2 meters above ground level. The Grass temperature detector was added December 2009 and is at grass level about 2 meters from the house on the north west side in the shadow of a fence, using a 1 wire temperature sensor. |
|
|
|
|
|
June 2008 Weather System installed and connected to a web server December 2009 1 wire Grass temperature added to weather system April 2010 Weather System move to a new computer and now running under windows 7 July 2010 Rain & Temperature sensors moved to a more accessible location.
|
|
